DOUBLE-COVERED YARN

Creating a 3D covering method that has an additive effect on yarn quality

Double Covered Yarn (DCY)

The general process of this yarn is centered on a spandex covered with two main yarns which are opposite to each other. One of them is Z twist direction (that is, clockwise), and the other is S twist direction (counterclockwise direction). Both yarns wrap around the spandex (that is, outer- and -inner wrapped) using different twist angles to manufacture different fabric handfeel. Therefore, the two main yarns do not need to be the same type and different fibers as well as different specifications can also be used; the feature characteristic of the Zhen Shuo process is that the matching yarn and the two main yarns can be adjusted according to customer needs.

APPLICATIONS

Seamless Garment Compression Stocks Weft-knitted Uppers

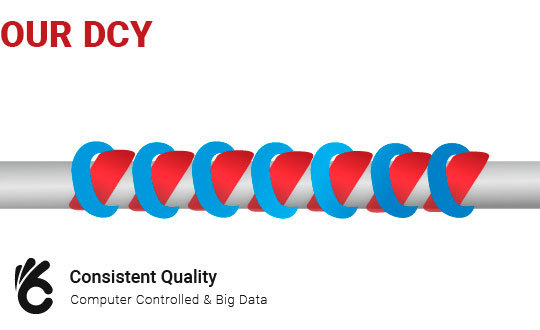

OUR ADVANTAGE

ZHENSHUO FIBER (SHENZHEN) CO., LTD. uses the electronic system to grasp the key elements of the single package process - "length" and "angle", and with the accumulated experience of the parameter system over the years, create the "wrapping length", "package The "winding angle" has a high degree of uniformity, allowing customers to have a high-quality single-wrap yarn with an excellent hand feel and a core yarn that is not easily damaged, and provides a satisfactory solution for the balance between cost and product quality.

SPECIFICATION

Standard		Type		Luster
Spandex(D)	Polyester (D/F)	FDY	DTY	Bright	Semi-dull	Full-dull
15 20 30 40 55 70 120 140 180 210 260 280 350 420 560 840 1120 1680	20/24		v		v
	30/24		v		v
	40/24		v		v
	50/72		v		v
	75/36		v		v
	75/72		v		v
	75/144		v		v
	100/36		v		v
	100/96		v		v
	150/48		v		v
	150/96		v		v
	150/144		v		v
	300/96		v		v
	75/72/2		v		v
	75/144/2		v		v
	300/96		v		v

※ Note: This table is a common specification, and a customized service is also available.

Standard		Type		Luster
Spandex(D)	Nylon 6 (D/F)	FDY	DTY	Bright	Semi-dull	Full-dull
15 20 30 40 55 70 120 140 180 210 260 280 350 420 560 840 1120 1680	12/5	v		v	v
	15/3	v		v
	15/5		v		v
	17/10	v	v	v	v
	20/7		v		v
	20/24	v	v		v	v
	30/10		v		v
	30/24		v		v
	30/36		v			v
	40/14	v	v		v
	40/34		v		v	v
	40/48		v		v
	50/48		v		v
	70/24	v	v	v	v	v
	70/48	v	v	v	v	v
	70/72	v	v		v	v
	100/24		v		v
	140/48	v	v		v
	140/96	v	v		v	v
	140/144	v	v		v	v
	200/48		v		v
	210/72		v		v

※ Note: This table is a common specification, and a customized service is also available.

Standard		Type		Luster
Spandex(D)	Nylon 6.6 (D/F)	FDY	DTY	Bright	Semi-dull	Full-dull
15 20 30 40 55 70 120 140 180 210 260 280 350 420 560 840 1120 1680	7/5	v			v
	10/7	v	v		v
	12/5	v			v
	20/7		v		v
	20/20		v		v	v
	30/10		v		v
	30/20		v		v
	40/34		v		v	v
	40/51		v			v
	50/34		v		v
	70/34		v		v	v
	70/68	v	v		v	v
	100/34		v		v
	140/136		v		v	v

※ Note: This table is a common specification, and a customized service is also available.
